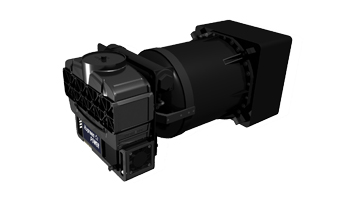

Fuel-Cell Power Packs
Product Features
- Compact & light-weight
- Fully integrated with fuel-cell module and H2 generation module
- Optimal solution for UAVs and Drones
- Replaceable fuel cartridges
- High-Energy-Density & Long Operating time
- Safe and easy to use
- Customizable depending on customer requirements

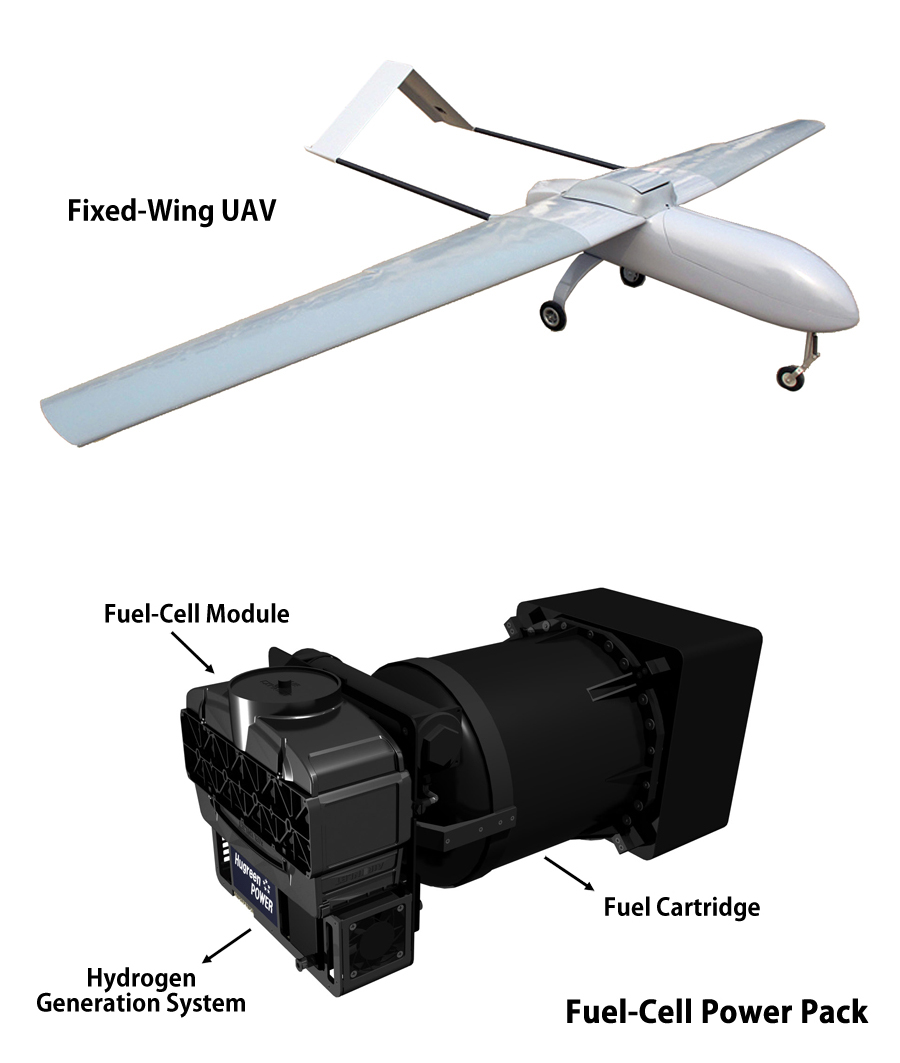

Fuel-Cell Power Pack for Fixed-Wing UAV
| Specifications | ||
|---|---|---|
| Fixed-Wing UAV | UAV platform | Fixed-wing |
| Maximum payload | 8,000 g | |
| Flight time | 10 hr | |
| Fuel-Cell Module | Maximum output power | 650 W |
| Peak power |
1,000 W |
|
| Output voltage | 20 -25 V | |
| H2 Generation Module | H2 storage capacity | 270 g |
| Storage method | Replaceable Fuel Cartridge | |
| Fuel-Cell Power Pack (Integrated with Fuel-Cell Module and H2 Generation Module) |
Weight | 7.4 kg |
| Volume | 20.6 L | |
| Energy capacity | 5,037 Wh | |
| Energy density | 683 Wh/kg | |
| 245 Wh/L | ||

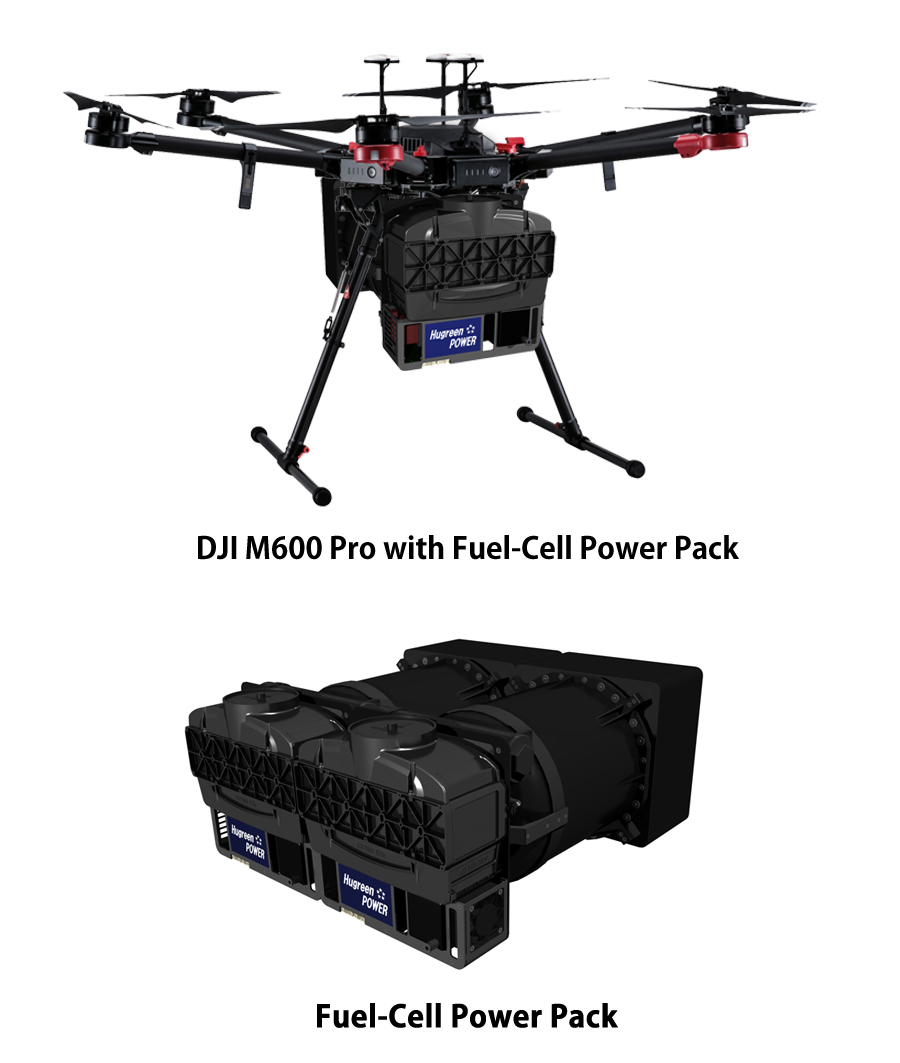

Fuel-Cell Power Pack for Drone (Hexacopter)
| Specifications | ||
|---|---|---|
| Drone | Drone platform | DJI M600 PRO |
| Maximum payload | 1,000 g | |
| Flight time | 2 hr 30 min | |
| Fuel-Cell Module | Maximum output power | 1,600 W |
| Peak power |
2,800 W |
|
| Output voltage | 20 -25 V | |
| H2 Generation Module | H2 storage capacity | 270 g |
| Storage method | Replaceable Fuel Cartridge | |
| Fuel-Cell Power Pack (Integrated with Fuel-Cell Module and H2 Generation Module) |
Weight | 8.4 kg |
| Volume | 22.3 L | |
| Energy capacity | 5,037 Wh | |
| Energy density | 600 Wh/kg | |
| 226 Wh/L | ||

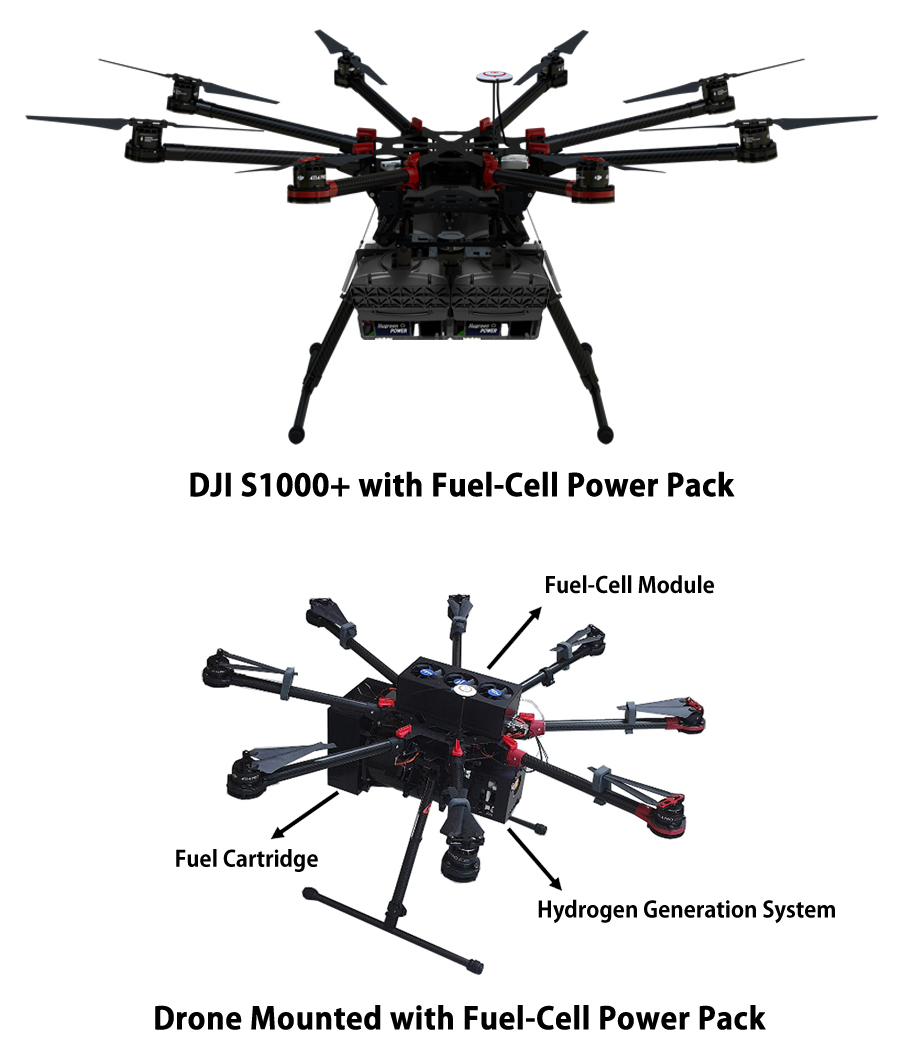

Fuel-Cell Power Pack for Drone (Octocopter)
| Specifications | ||
|---|---|---|
| Drone | Drone platform | DJI S1000+ |
| Maximum payload | 1,000 g | |
| Flight time | 1 hr 40 min | |
| Fuel-Cell Module | Maximum output power | 2,400 W |
| Peak power |
4,800 W |
|
| Output voltage | 44 -50 V | |
| H2 Generation Module | H2 storage capacity | 270 g |
| Storage method | Replaceable Fuel Cartridge | |
| Fuel-Cell Power Pack (Integrated with Fuel-Cell Module and H2 Generation Module) |
Weight | 9.5 kg |
| Volume | 29.7 L | |
| Energy capacity | 5,037 Wh | |
| Energy density | 530 Wh/kg | |
| 170 Wh/L | ||
