Customized Products

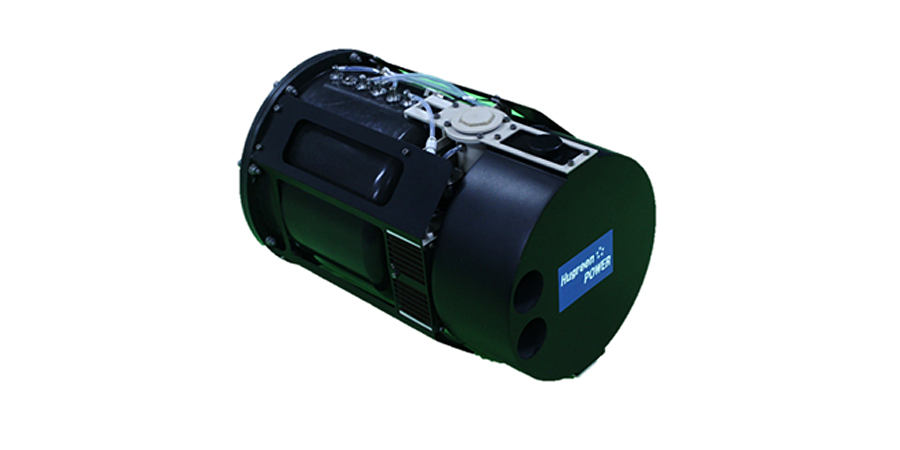

HP-1000HGSB

1kW Hydrogen Generator for military-purpose high altitude Unmanned Aerial Vehicle(UAV) to Boeing

Item Value
Max. H2 Gen. Rate 14.7 SLPM for 1kW
Temperature Range -40 ~ 60℃
System Weight 1,500 g
Fuel Weight 4,500 g
System volume (D x L) 14.8L (230 X 358 mm)
Operating time 4 h at the constant flow rate of 14.7 SLPM
Energy Capacity 4,000 Wh
Specific Energy 650 Wh/kg
270 Wh/L

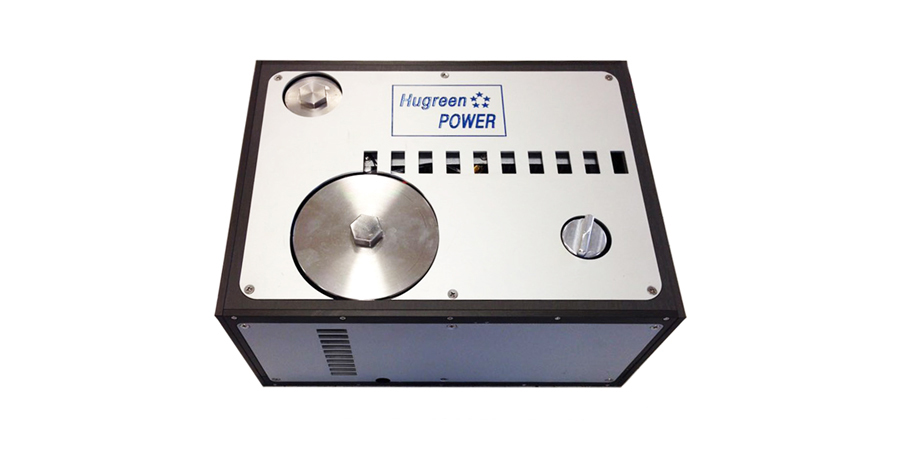

HP-200FCSN

200W fuel-cell powered Generator for auxiliary power of the relief battery pack vehicles for NATO

Item Value
Output Power 200 W
Peak Power 600 W
Output Voltage 20~33V
System Weight 6,000 g
Fuel Weight 1,000 g
System Volume (W x H x L) 8.6L (220 X 130 X 300 mm)
Operating time 4.5h at the constant power of 200W
Energy Capacity 900 Wh
Specific Energy 128 Wh/kg
105 Wh/L

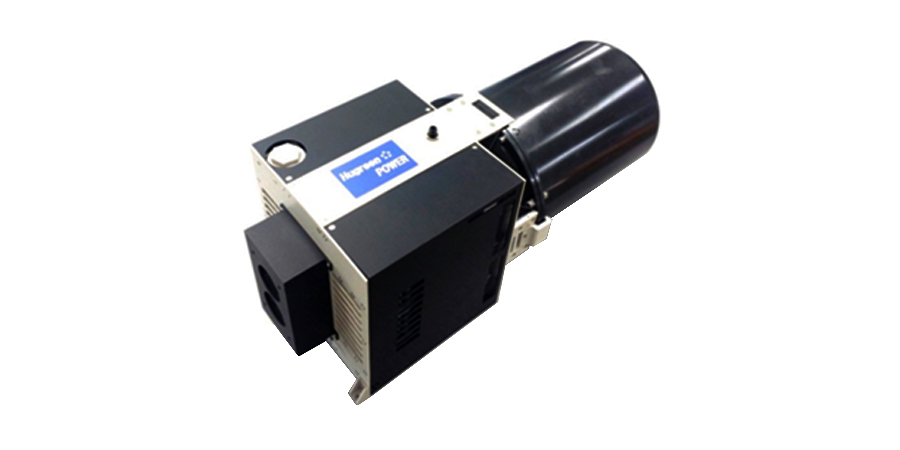

HP-500HGSE

500W Hydrogen Generator for smart UAV in collaboration with KIER





Item Value
Max. H2 Gen. Rate 7 SLPM for 500W
Temperature Range -40 ~ 60℃
System Weight 3,000 g
Fuel Weight 2,500 g
System volume (W x H x L) 24L (202 X 220 X 540 mm)
Operating time 7 h at the constant flow rate of 7 SLPM
Energy Capacity 3,500 Wh
Specific Energy 636 Wh/kg
145 Wh/L

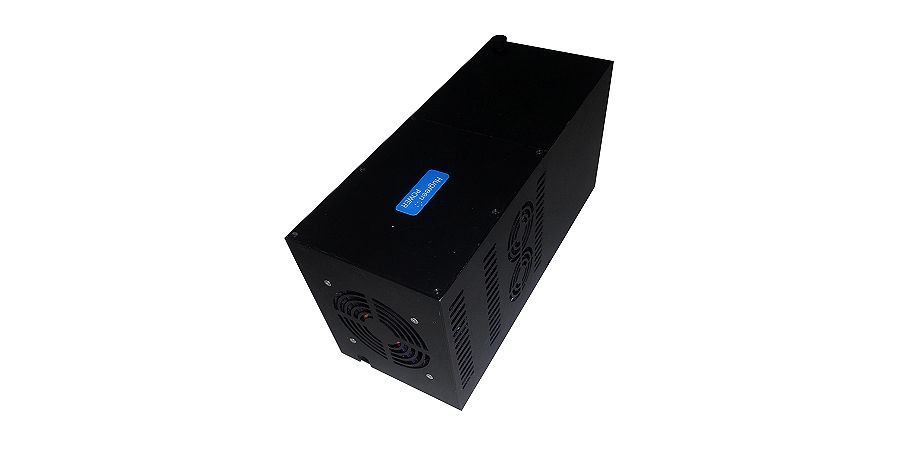

HP-200FCSK

200W fuel-cell powered Power Pack for Korean military UAV





Item Value
Output Power 200 W
Peak Power 600 W
Output Voltage 20~33V
System Weight 1,220 g
Fuel Weight 1,000 g
System Volume (W x H x L) 3.4L (105 X 126 X 260 mm)
Operating time 4.5 h at the constant power of 200W
Energy Capacity 900 Wh
Specific Energy 405 Wh/kg
260 Wh/L
